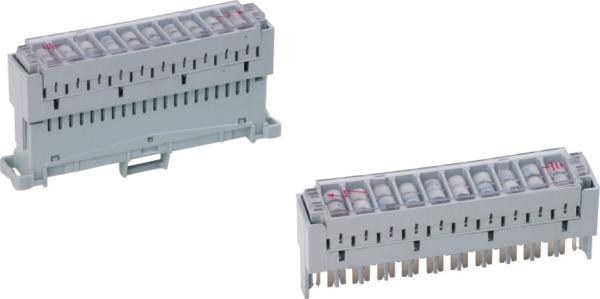

Environmental Protection Krone Module 10 Pair 3 Pole Arrester
Magazine YH6089202461
Quick Detail:
1, Material: PBT or ABS(UL94V-0)
2, Contact: Phosphor Bronze
3, Silver Plating: 0.5 um1.25 um5 um
4, Can be installed on krone type terminal block
5, With 2pole arrester or 3 pole arrester,can be with duct cover.
6. 8Pair protection magazine,10Pair protection magazine,krone
single pair protector,5pin lightning protector,various type on
option.
7, 100% test passed,arrester voltage usually for 230V,it can be on
your requirement.
Description:
Mechanical Performance
Plastic material: ABS&PBT(UL94V-0)
Contact material: Phosphor Bronze.
Surface Plating Silver(0.5um-5um)
Earth bar: Phosphor Bronze.
Surface Plating nickel
Electrical Performance:
Insulation Resistance: R≥1000M Ohm
Contact Resistance: R≤5m ohm
Dielectric Strength: 1200V DC 60s can't spark over and haven't fly
arc
The 10pair LSA magazine can be offerred with arrester or
unequiped.Gas Discharge Arrester available for 2pole and 3pole
types.Usually with voltage 230v arrester(GDT).Each magazine is
completely tested before sending to our clients.This protection
magazine is used together with the LSA krone module 10pair and
8pair .Meantime there is a plastic cover to plug into the top for
avoid any duct affaction.
ORDERING INFORMATION
Item no. Description
MT-60892024-61 10pair magazine with 2pole arrester,unequipped on
option
MT-60892023-08 10pair magazine with 3pole arrester,unequipped on
option
The module housing material we mainly offer with imported GE PBT
and ABS(UL94V-0).Both material we will use new rall material but
not recycling material(first recycling or second recycling).So we
can offer good performance modules.You can get very cheap products
in the market but they are mainly made of such recycling material
PBT or ABS.
Features:
1. Designed for the complete equipment of Krone disconnection
module and connection module, for overvoltage protection functions.
2. Could be installed with 2 pole or 3 pole overvoltage arrester
(GDT).
3. Material of Plastic Parts: PBT/ABS/PC, Fair-Resistant
4. Color: Gray base with gray body.
5. With yellow Mark or dust cover available.
Specifications :
| Mechanical Performance | Plastic material: ABS&PBT(UL94V-0) |
| Contact material: Phosphor Bronze. |
| Surface Plating Silver(0.5um-5um) |
| Earth bar: Phosphor Bronze.Surface Plating nickel |
| Environment Characteristic | Storage Tempreture: 40 to 70°C |
| Operating Temperature : 10 to 60°C |
| Relative Humidity: 95%, noncondition |
| Electrical Performance | Insulation resistance: 1000 Mohms minimum |
| Contact resistance :5 mohms maximum |
| Dielectric intensity: 1200V DC 60s can't spark over and haven't fly
arc |
