Product Details:
| Place of Origin: | China |
| Brand Name: | YUHUI |
| Certification: | ISO,RHOS,UL,CE |
| Model Number: | YH-FO-ESC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000pieces | |
| Price: | Negotiation | |
| Packaging Details: | 10piece/bag | |
| Delivery Time: | 10days | |
| Payment Terms: | TT,LC,West Union, D/A | |
| Supply Ability: | 5000000pieces/month | |
| Name: | SC/APC Fast Connector | Fiber Type: | SM |
| PC: | Housing Color Blue | APC: | Housing Color Green |
| Polishing: | APC Or PC | Applicable Cable: | Indoor Cable Or Drop Cable |

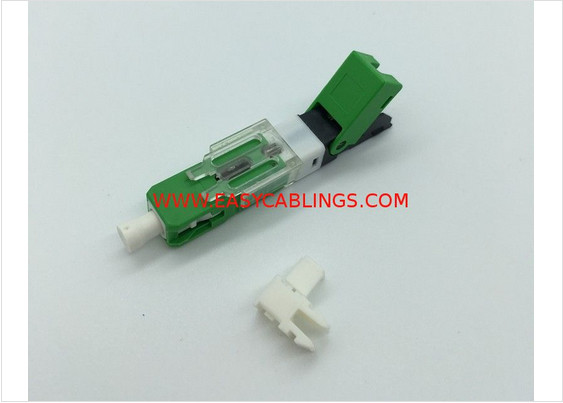

Mechanical Field-Mountable Fiber Optic SC APC Fast Connector Buckle
Device For Narrow Space
Quick Detail:
1. Connector Type: fast connector SC, RoHS compliant , 100% Optical
Test
2. Size:49.5*7*6mm
3. Mechanical Field-Mountable Fiber Optic Connector is worked
without fusion splicing machine
4. Used widely in ONU
Description:
Easy operating, The connector can be directly used in ONU, also
with fasten strength more than 5 kg, it is widely used in FTTH
project of network revolution. It also reduce the use of sockets
and adapters, save cost of project.With 86 standard socket and
adapter, the connector makes connection between drop cable and
patch cord. The 86 standard socket provides complete protection
with its unique design.Applicable to connection with field
mountable indoor cable, pigtail, patch cord and transformation of
patch cord in data room and directly used in specific ONU.
Operation:
Step 1. Stripper the drop wire sheath with professinal fiber optic
stripper.You can Use our tool Drop wire sleeve stripping vise
YH-1609.
Step 2. Clean the fiber core with cleaning alcohol and set prepared
cable onto insertion Guide,Cut with fiber cleaver
Step 3. Insert fiber/cable until souds "Click"
Step 4. Remove the squeeze wedge plate
Applicable to connection with field mountable indoor cable,
pigtail, patch cord and transformation of patch cord in data room
and directly used in specific ONU.
Applications:
High speed Enterprise servers
Multiplexers,switches and routers
Optical Access and ATM Networks Equipment
Optical Transport and Telecommunications,FTTH,FTTD,FTTX
Switching Equipment
Specification
| Cable Scope | 3.01x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≤ -55dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >50 N |
| Teperature | -40～+85℃ |
| On-line Tensile Strength Test (20 N) | △ IL ≤ 0.3dB |
| Mechanical Durability(500 times) | △ IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times
total) | △ IL ≤ 0.3dB |
